Outdoor Use Monocrystalline Silicon Solar Panels 530w With 25 Years Warranty
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE、BSCI |
| Model Number: | LS-530M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Protection Class: | IP68 Rated | Module Name: | 530W Silicon Solar Panels |
|---|---|---|---|
| Warranty: | 25 Years | Power: | 530W |
| Connector Type: | MC4 | Output Cables: | 4.0 Mm²(0.006 Inches²),Length:1300mm |
| Cell Type: | Mono-crystalline PERC,182x91mm | Maximum System Voltage: | DC 1500V |
| Highlight: | Outdoor Use Monocrystalline Silicon Solar Panels,Monocrystalline Silicon Solar Panels 530w,Waterproof Monocrystalline Silicon Panels |
||
Product Description

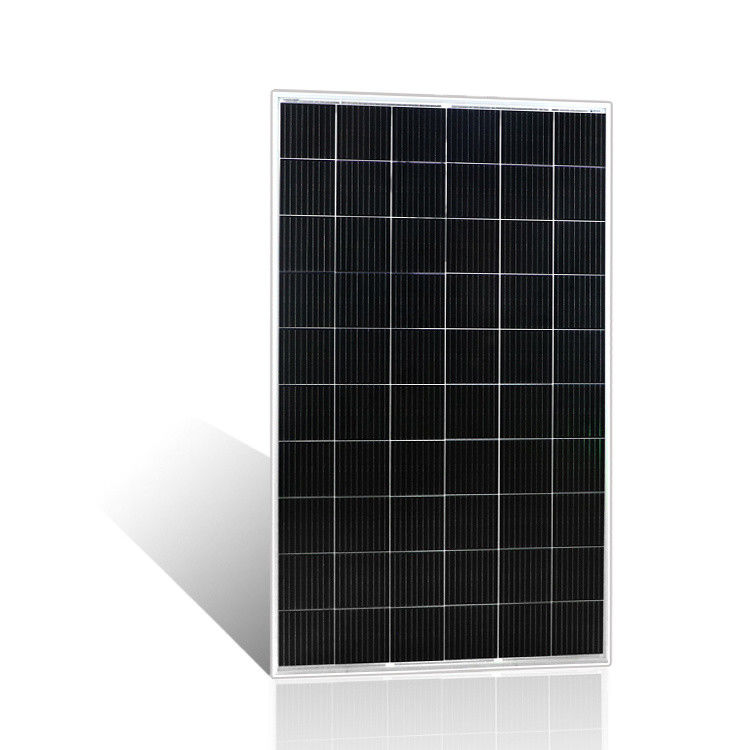

Linksun Monocrystalline 530w Silicon Solar Panels With 25 Years Warranty
Our 530W monocrystalline silicon solar panels offer exceptional efficiency and durability. Engineered with cutting-edge technology, these panels ensure maximum energy production and reliable performance. They are designed to endure extreme weather conditions, making them ideal for residential, commercial, and industrial use. With a 25-year warranty, these panels guarantee long-term sustainability and a great return on investment, providing a cost-effective and eco-friendly energy solution.
Product Features:
1)High Efficiency
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.
3)High Tolerance
It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.
Product Details:
| Model | LS-D530M |
| Maximum Power(Pmax) | 530W |
| Maximum Power Voltage(Vmp) | 41.39V |
| Maximum Power Current(Imp) | 12.81A |
| Open Circuit Voltage(Voc) | 49.26V |
| Short Circuit Current(Isc) | 13.69A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline PERC,182x91mm |
| Product Dimension(mm) | 2279*1134*5.5mm(89.72x44.64x0.22inches) |
| Weight(KGS) | 31.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.51% |
| Cell number | 144(6x24)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed double layer colorless glass (B)2.0mm semi-tempered glass |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1300mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 10 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 720 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
