595W Linksun M12/120H Monocrystalline Solar Panels With 25 Years Warranty
Product Details:
Place of Origin: | China |
Brand Name: | Linksun |
Certification: | CE |
Model Number: | LS-D595M |
Document: | Product Brochure PDF |
Payment & Shipping Terms:
Minimum Order Quantity: | 100PCS |
---|---|
Packaging Details: | 1pcs/carton |
Delivery Time: | 5-8days |
Payment Terms: | 30% TT in advance, 70% balance before delivery. |
Supply Ability: | 1000pieces per week |
Detail Information |
|||
Connector Type: | MC4 | Protection Class: | IP68 |
---|---|---|---|
Efficiency: | 21.0% | Lifespan: | 25 Years |
Material: | Mono-crystalline PERC,210x105mm | Operating Temperature: | -40°C To 85°C |
Product Name: | 595W Silicon Solar Panels | Size: | 2172*1303*35mm(85.51*51.29*1.38inches) |
Warranty: | 25 Years | Weight: | 30.9kg |
Highlight: | 595w silicon solar cell,595 watt silicon solar cell,photovoltaic solar panels 595W |
Product Description

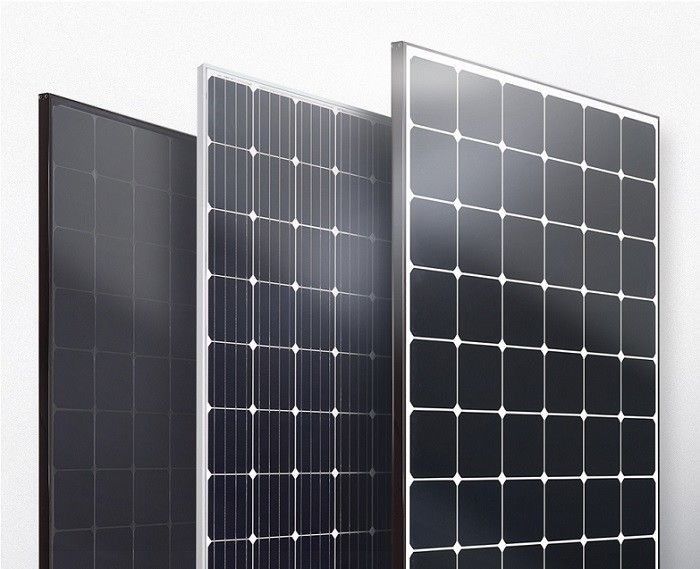

Linksun M12/120H Monocrystalline 595w solar panels with 25 Years Warranty
These advanced monocrystalline solar panels provide 595W of power and are backed by a 25-year warranty for exceptional reliability and longevity. Ideal for residential and commercial applications, they are engineered for high energy efficiency and durability. With cutting-edge technology and sturdy construction, these panels ensure maximum energy capture even in challenging conditions, offering a sustainable and cost-effective solution for energy needs.
Product Features:
1)High Efficiency
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.
3)High Tolerance
It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.
Product Details:
Model | LS-D595M |
Maximum Power(Pmax) | 595W |
Maximum Power Voltage(Vmp) | 34.2V |
Maximum Power Current(Imp) | 17.40A |
Open Circuit Voltage(Voc) | 41.3V |
Short Circuit Current(Isc) | 18.47A |
Power Tolerance(Positive) | 3% |
Cell Type | Mono-crystalline PERC,210x105mm |
Product Dimension(mm) | 2172*1303*35mm(85.51*51.29*1.38inches) |
Weight(KGS) | 30.9kg |
Protection Class | IP68 |
Maximum System Voltage | 1500V DC-(H) |
Operating Temperature Range | -40℃~85℃ |
Module Efficiency STC | 21.0% |
Cell number | 120(6x20)(Half-Cell) |
Front Glass | 3.2mm High Transmission Tempered Glass(0.13inches) |
Connector Type | MC4 |
Output Cables | 4 mm²,Length:1300mm |
Temperature Characteristics | Packing Configuration | ||
Temp.Coeff.of Isc(TK Isc) | 0.05%/℃ | Container | 40’HQ |
Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 31 |
Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 18 |
Normal operating cell Temperature | 44±2℃ | Pieces per container | 558 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
