• 695w N Type Silicon Solar Panels High Efficiency Solar Panels
695w N Type Silicon Solar Panels High Efficiency Solar Panels

695w N Type Silicon Solar Panels High Efficiency Solar Panels

Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE
Model Number: LS-D695M
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Application: RV,Home,House,Boat,Farm Connector Type: MC4
Efficiency: 22.4% Lifespan: 25 Years
Material: Monocrystalline Silicon Power: 695W
Size: 2384*1303*33mm(93.85x51.29x1.30 Inches) Temperature Range: -40℃~+85℃
Type: N Type Mono-crystalline 210x105mm Warranty: 25 Years
Weight: 34kg
Highlight:

695w Silicon Solar Panels

,

N type Silicon Solar Panels

,

695 watt high efficiency solar panels

Product Description

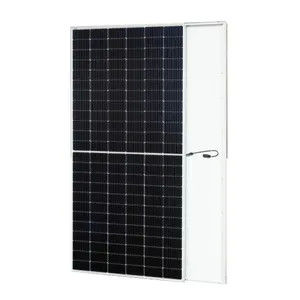

Linksun Monocrystalline 695w silicon solar panels with 25 Years Warranty



These premium monocrystalline silicon solar panels deliver 695W of power and come with a 25-year warranty, ensuring long-lasting reliability and performance. Ideal for both residential and commercial installations, they are designed for maximum energy efficiency. With advanced technology and robust construction, these panels optimize energy capture even in low-light conditions, providing a sustainable and cost-effective energy solution.





Product Features:



1)High Efficiency

High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.



2)Reliable and Durable

Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.



3)High Tolerance

It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.





Product Details:



Model LS-D695M
Maximum Power(Pmax) 695W
Maximum Power Voltage(Vmp) 39.8V
Maximum Power Current(Imp) 17.47A
Open Circuit Voltage(Voc) 47.7V
Short Circuit Current(Isc) 18.44A
Power Tolerance(Positive) 3%
Cell Type N type Mono-crystalline 210x105mm
Product Dimension(mm) 2384*1303*33mm(93.85x51.29x1.30 inches)
Weight(KGS) 34kg
Protection Class IP68 rated
Maximum System Voltage DC 1500V
Operating Temperature Range -40℃~85℃
Module Efficiency STC 22.4%
Cell number 132(6x22)(Half-Cell)
Front Glass 3.2mm High Transmission Tempered Glass(0.13 inches)
Connector Type MC4
Output Cables 4.0 mm²(0.006 inches²),Length:1300mm



Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.05%/℃ Container 40’HQ
Temp.Coeff.of Voc(TK Voc) -0.25%/℃ Pieces per pallet 66
Temp.Coeff.of Pmax(TK Pmax) -0.29%/℃ Pallets per container 9
Normal operating cell Temperature 41±3℃ Pieces per container 594



695w N Type Silicon Solar Panels High Efficiency Solar Panels 0



FAQ:


Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.

Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.

Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

Q5:Where are your goods exported?
A:We can export to all over the world.
