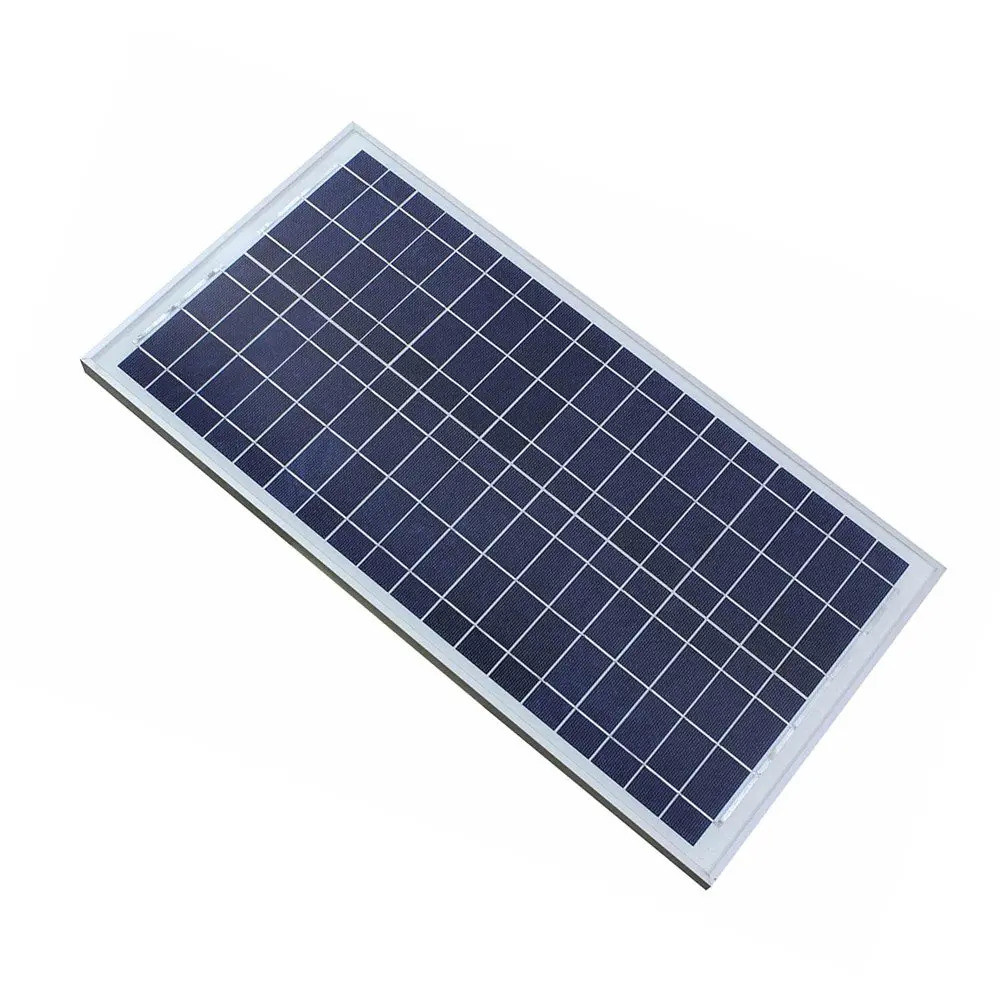

290 Watt 30V Polycrystalline Silicon Pv Panels 35.95V Crystalline Solar Modules
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-290P |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
|
Detail Information |
|||
| Durability: | High | Efficiency: | High |
|---|---|---|---|
| Installation: | Easy | Lifespan: | Long |
| Material: | Polycrystalline | Power: | 290w |
| Size: | 1640*992*35mm | Warranty: | 25 Years |
| Highlight: | 30V polycrystalline silicon pv panels,290 watt polycrystalline silicon pv panels,35.95V crystalline solar modules |
||
Product Description
290 Watt 30V Polycrystalline Silicon Pv Panels 35.95V Crystalline Solar Modules
These 290W polycrystalline silicon PV panels, operating at 30V with a maximum voltage of 35.95V, are designed for high efficiency and reliability. Ideal for residential and commercial installations, they offer robust energy output and durable performance. The crystalline solar modules maximize energy production while ensuring long-term sustainability. Perfect for reducing energy costs and environmental impact, these panels provide a cost-effective and eco-friendly solution for harnessing solar power.
Product Features:
1)Durable&Sturdy
The product contains anodized aluminum alloy frame.It can work in the temperature between -40℃~85℃ and withstand the high winds (2400Pa) and snow loads (5400Pa).
2)Wide application
Common applications includes RV, camper, car, marine, residential rooftop, remote farm,traffic signs, etc.
3)eco-friendly
It uses polycrystalline solar cells. A poly crystalline solar panel is economical, eco-friendly, consumes less energy, and can function in all temperatures.
Product Details:
| Model | LS-290P |
| Maximum Power(Pmax) | 290W |
| Maximum Power Voltage(Vmp) | 30V |
| Maximum Power Current(Imp) | 9.66A |
| Open Circuit Voltage(Voc) | 35.95V |
| Short Circuit Current(Isc) | 10.63A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Poly-crystalline |
| Contract Dimensions(mm) | 1640*992*35mm |
| Weight(KGS) | 21kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 17.35% |
| Cell number | 60(6x10) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
