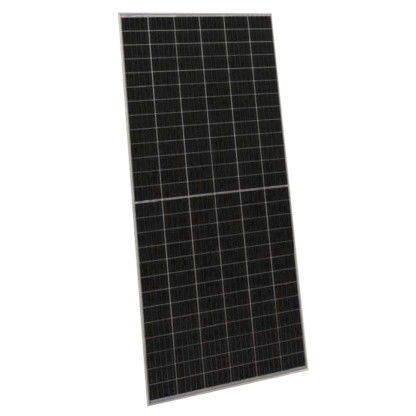

• 570W Linksun 31.5kg Monocrystalline Silicon Solar Panels With 25 Years Warranty
570W Linksun 31.5kg Monocrystalline Silicon Solar Panels With 25 Years Warranty

570W Linksun 31.5kg Monocrystalline Silicon Solar Panels With 25 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE、BSCI
Model Number: LS-570M
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Connector Type: MC4 Dimensions: 2279*1134*5.5mm(89.72*44.64*0.22inches)
Front Glass: (F)2.0mm Ultra Clear Embossed Double Layer Colorless Glass (B)2.0mm Semi-tempered Glass Item Type: Silicon Solar Panel
Lifespan: More Than 25 Years Minimum Order: 100pcs
Module Name: 570W Silicon Solar Panel Number Of Cells: 144(6x24)(Half-Cell)
Warranty: 25 Years
Highlight:

MC4 Connector Mono Crystalline Solar Panels

,

570w Monocrystalline Silicon Solar Panels

,

N Type Monocrystalline Silicon Solar Panels

Product Description

Linksun 570w 31.5kg Monocrystalline Silicon Solar Panels With 25 Years Warranty



Introducing our 570W Monocrystalline Silicon Solar Panels, weighing 31.5kg and designed for optimal efficiency and durability. These panels use advanced monocrystalline silicon technology for superior performance, even in low-light conditions. With an IP68 waterproof rating, they are built to endure various weather conditions, ensuring reliable operation. Backed by a 25-year warranty, they promise long-term energy production and peace of mind. Perfect for residential, commercial, and industrial applications, these solar panels provide a sustainable and efficient energy solution.





Product Features:



1)High Efficiency

High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.



2)Reliable and Durable

Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.



3)High Tolerance

It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.





Product Details:



Model LS-570M
Maximum Power(Pmax) 570W
Maximum Power Voltage(Vmp) 42.26V
Maximum Power Current(Imp) 13.49A
Open Circuit Voltage(Voc) 51.13V
Short Circuit Current(Isc) 14.2A
Power Tolerance(Positive) 3%
Cell Type N type Mono-crystalline,182x91mm
Product Dimension(mm) 2279*1134*5.5mm(89.72*44.64*0.22inches)
Weight(KGS) 31.5kg
Protection Class IP68
Maximum System Voltage 1500V DC-(H)
Temperature Range -40℃~85℃
Module Efficiency STC 22.06%
Cell number 144(6x24)(Half-Cell)
Front Glass

(F)2.0mm ultra clear embossed double layer colorless glass

(B)2.0mm semi-tempered glass

Connector Type MC4
Output Cables 4 mm²,Length:1300mm



Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.046%/℃ Container 40’GP
Temp.Coeff.of Voc(TK Voc) -0.25%/℃ Pieces per pallet 72
Temp.Coeff.of Pmax(TK Pmax) -0.30%/℃ Pallets per container 10
Normal operating cell Temperature 45±2℃ Pieces per container 720



570W Linksun 31.5kg Monocrystalline Silicon Solar Panels With 25 Years Warranty 0



FAQ:


Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.

Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.

Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

Q5:Where are your goods exported?
A:We can export to all over the world.
