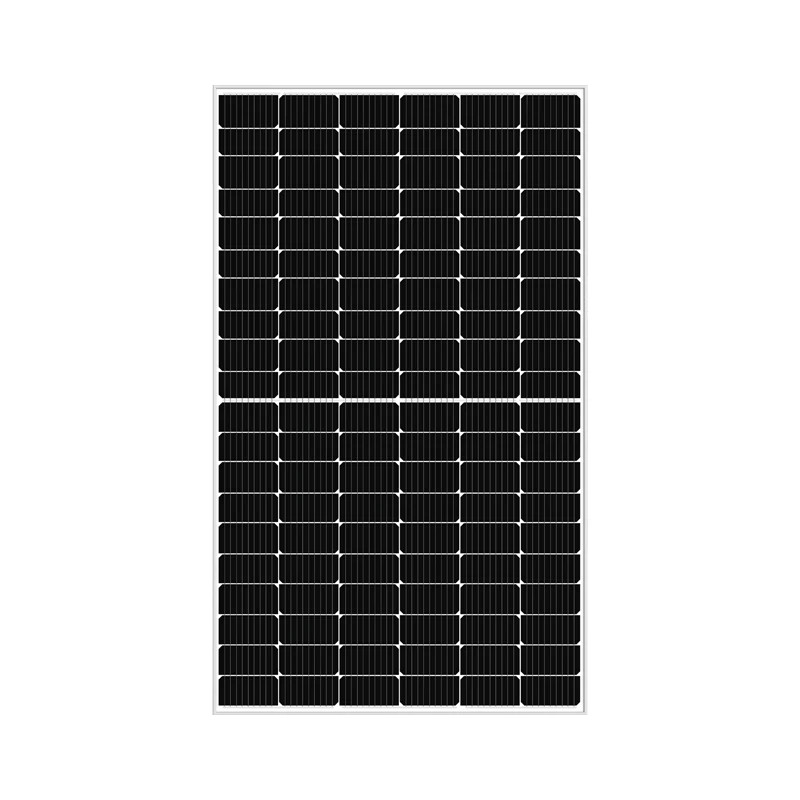

435W Mono Solar Panels for Large Public Buildings
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-D465M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Connector: | MC4 | Efficiency: | 21.47% |
|---|---|---|---|
| Junction Box: | IP68 Rated | Lifespan: | 25 Years |
| Material: | Monocrystalline | Output Cable: | 4.0 Mm²(0.006 Inches²) |
| Power: | 465W | Product Name: | 465W Frameless Solar Panel |
| Size: | 1910*1134*5.5mm(75.20x44.65x0.22 Inches) | Warranty: | 25 Years |
| Highlight: | 465w Frameless Solar Panel,14.34A Frameless Solar Panel,465 watt black mono solar panels |
||
Product Description
435W Mono Solar Panels for Large Public Buildings
The 435W Mono Solar Panels are designed specifically for large public buildings, offering high efficiency and reliable performance. These monocrystalline panels ensure maximum energy output and excellent durability. With advanced technology and robust construction, they are ideal for large-scale installations, providing long-term energy savings and environmental benefits. Perfect for schools, hospitals, and other public infrastructures, these panels deliver consistent power generation even in challenging conditions.
Product Features:
1)High aesthetics
The overall frameless design of the double glass frameless photovoltaic module is more aesthetically pleasing and can be integrated into the exterior of the building.
2)Good weather resistance and reliability
Adopting a double glass design can effectively improve the weather resistance and reliability of the component, and extend its service life.
3)More convenient installation
Due to the borderless design, installation is more convenient and fast, reducing installation costs and labor hours.
4)Higher power generation efficiency
By adopting more advanced production processes and materials, the photoelectric conversion efficiency is improved, resulting in higher power generation compared to traditional components.
5)Widely used
Double glass components are more suitable for use in photovoltaic agricultural greenhouses and sunlight houses
Product Details:
| Model | LS-D435M |
| Maximum Power(Pmax) | 435W |
| Maximum Power Voltage(Vmp) | 31.94V |
| Maximum Power Current(Imp) | 13.62A |
| Open Circuit Voltage(Voc) | 38.43V |
| Short Circuit Current(Isc) | 14.34A |
| Power Tolerance(Positive) | 3% |
| Cell Type | N type Mono-crystalline ,182x91mm |
| Product Dimension(mm) | 1722*1134*5.5mm(67.80x44.65x0.22 inches) |
| Weight(KGS) | 23kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 22.28% |
| Cell number | 108(6x18)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed double layer colorless glass (B)2.0mm black mesh glazed tempered glass |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.046%/℃ | Container | 40’GP |
| Temp.Coeff.of Voc(TK Voc) | -0.25%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.30%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 45±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
