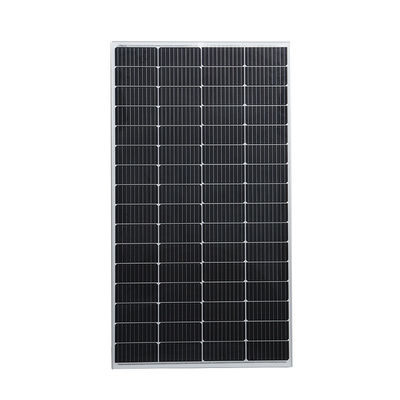

• 430w 31.79V Frameless Solar Module 430 Watt Bifacial PV Cells
430w 31.79V Frameless Solar Module 430 Watt Bifacial PV Cells

430w 31.79V Frameless Solar Module 430 Watt Bifacial PV Cells

Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE
Model Number: LS-D430M
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Connector: MC4 Efficiency: 22.02%
Frame: Frameless Material: Monocrystalline
Max Power: 430W Product Name: 430W Frameless Solar Panel
Size: 1722*1134*5.5mm(67.80x44.65x0.22 Inches) Warranty: 25 Years
Weight: 23kg
Highlight:

430w frameless solar module

,

31.79V frameless solar module

,

430 watt bifacial pv cells

Product Description

Linksun Mono Bi-facial 430w Double glass,frameless M10 TOPCON for large public buildings



The 430W 31.79V Frameless Solar Module features advanced bifacial PV cells, allowing it to capture sunlight from both sides for enhanced energy output. Its frameless design ensures lightweight, easy installation, and increased durability. With a power output of 430 watts and an operating voltage of 31.79V, this module is ideal for commercial and industrial applications. Built to withstand various environmental conditions, it offers reliable, high-efficiency performance, making it a cost-effective solution for large-scale solar energy projects.





Product Features:



1)High aesthetics
The overall frameless design of the double glass frameless photovoltaic module is more aesthetically pleasing and can be integrated into the exterior of the building.


2)Good weather resistance and reliability
Adopting a double glass design can effectively improve the weather resistance and reliability of the component, and extend its service life.

3)More convenient installation
Due to the borderless design, installation is more convenient and fast, reducing installation costs and labor hours.


4)Higher power generation efficiency
By adopting more advanced production processes and materials, the photoelectric conversion efficiency is improved, resulting in higher power generation compared to traditional components.





Product Details:



Model LS-D430M
Maximum Power(Pmax) 430W
Maximum Power Voltage(Vmp) 31.79V
Maximum Power Current(Imp) 13.53A
Open Circuit Voltage(Voc) 38.34V
Short Circuit Current(Isc) 14.25A
Power Tolerance(Positive) 3%
Cell Type N type Mono-crystalline ,182x91mm
Product Dimension(mm) 1722*1134*5.5mm(67.80x44.65x0.22 inches)
Weight(KGS) 23kg
Protection Class IP68 rated
Maximum System Voltage DC 1500V
Operating Temperature Range -40℃~85℃
Module Efficiency STC 22.02%
Cell number 108(6x18)(Half-Cell)
Front Glass

(F)2.0mm ultra clear embossed double layer colorless glass

(B)2.0mm black mesh glazed tempered glass

Connector Type MC4
Output Cables 4.0 mm²(0.006 inches²),Length:1100mm



Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.046%/℃ Container 40’GP
Temp.Coeff.of Voc(TK Voc) -0.25%/℃ Pieces per pallet 72
Temp.Coeff.of Pmax(TK Pmax) -0.30%/℃ Pallets per container 13
Normal operating cell Temperature 45±2℃ Pieces per container 936



430w 31.79V Frameless Solar Module 430 Watt Bifacial PV Cells 0



FAQ:


Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.

Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.

Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

Q5:Where are your goods exported?
A:We can export to all over the world.
