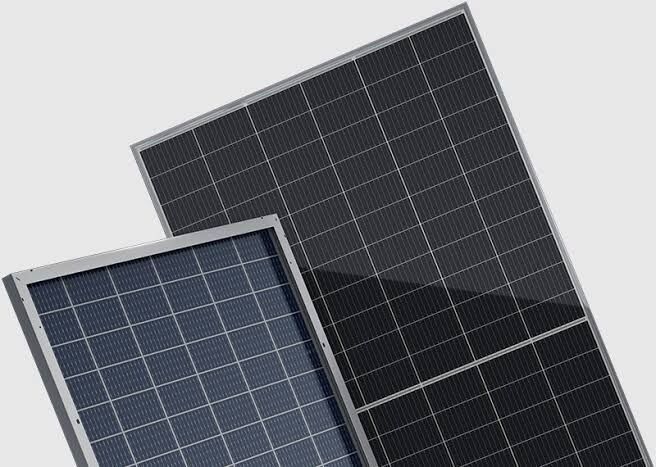

395 Watt 108 Cells Solarpanel Bifacial Monocrystalline Solar Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-395M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cell Type: | Mono-crystalline PERC,182x91mm | Certifications: | CE,BSCI |
|---|---|---|---|
| Dimensions: | 1722*1134*30mm(67.79x44.64x1.18 Inches) | Efficiency: | 20.20% |
| Frame: | Black,Anodized Aluminum Alloy | IP Rating: | IP68 Rated |
| Number Of Cells: | 108(6x18)(Half-Cell) | Operating Temperature: | -40 To 85°C |
| Product Name: | 395W Bifacial Solar Panels | Warranty: | 25 Years |
| Weight: | 25.5kg | ||
| High Light: | 395 watt solarpanel bifacial,108 Cells solarpanel bifacial,395W monocrystalline solar cell |
||
Product Description
Linksun Bifacial 395 watt Solar Panels with Black Frame Monocrystalline HJT with High Efficiency for Charging
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-395M |
| Maximum Power(Pmax) | 395W |
| Maximum Power Voltage(Vmp) | 30.62V |
| Maximum Power Current(Imp) | 12.90A |
| Open Circuit Voltage(Voc) | 36.73V |
| Short Circuit Current(Isc) | 13.69A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline PERC,182x91mm |
| Product Dimension(mm) | 1722*1134*30mm(67.79x44.64x1.18 inches) |
| Weight(KGS) | 25.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.20% |
| Cell number | 108(6x18)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
| Frame Type | Black,Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
Q6:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.
Q7:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
