Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE
Model Number: LS-D390M
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Cell Type: Mono-crystalline Bifacial HJT,166x83mm Certifications: CE,BSCI
Dimensions: 1755*1038*30mm(69.09x40.87x1.18 Inches) Efficiency: 21.41%
Frame: Black,Anodized Aluminum Alloy Operating Temperature: -40 To 85°C
Type: Bifacial Solar Panels Warranty: 25 Years
Weight: 23.5kg
Highlight:

390watt Bifacial Solar Panels

,

23.5kg Bifacial Solar Panels

,

BSCI monocrystalline solar panel kit

Product Description

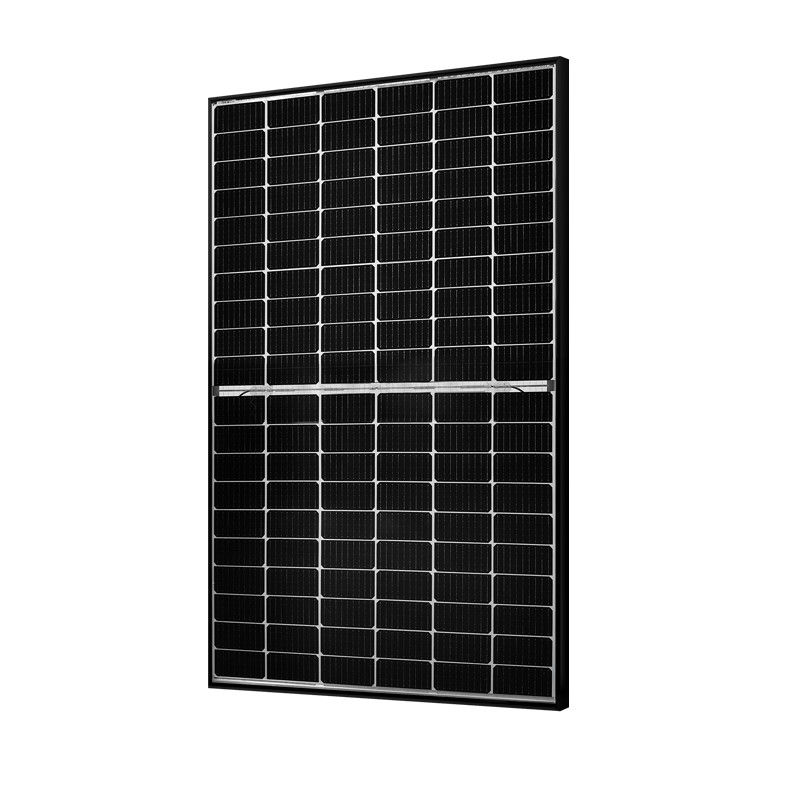

390watt 23.5kg Bifacial Solar Panels BSCI Monocrystalline Solar Panel Kit For Charging



The 390 Watt Bifacial Solar Panels, weighing 23.5 kg, feature advanced monocrystalline technology and BSCI certification for high efficiency and quality. Designed to capture sunlight from both sides, these panels significantly boost energy output, making them ideal for charging applications. Suitable for residential, commercial, and industrial use, they utilize reflected light to maximize power generation. Their robust and durable construction ensures long-term reliability and performance. This solar panel kit is a perfect solution for reducing electricity costs and promoting sustainable energy.



Product Features:



1)Higher efficiency

With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.



2)Easy to install and use

The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.



3)Advanced Technology

As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.



Product Details:



Model LS-D390M
Maximum Power(Pmax) 390W
Maximum Power Voltage(Vmp) 37.91V
Maximum Power Current(Imp) 10.30A
Open Circuit Voltage(Voc) 44.48V
Short Circuit Current(Isc) 10.62A
Power Tolerance(Positive) 3%
Cell Type Mono-crystalline Bifacial HJT,166x83mm
Product Dimension(mm) 1755*1038*30mm(69.09x40.87x1.18 inches)
Weight(KGS) 23.5kg
Protection Class IP68 rated
Maximum System Voltage DC 1500V
Operating Temperature Range -40℃~85℃
Module Efficiency STC 21.41%
Cell number 120(6x20)(Half-Cell)
Front Glass

(F)2.0mm ultra clear embossed semi-tempered coated glass

(B)2.0mm semi-tempered glass

Frame Type Black,Anodized Aluminum Alloy
Connector Type MC4
Output Cables 4.0 mm²(0.006 inches²),Length:1100mm



Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.04%/℃ Container 40’HQ
Temp.Coeff.of Voc(TK Voc) -0.24%/℃ Pieces per pallet 72
Temp.Coeff.of Pmax(TK Pmax) -0.2%/℃ Pallets per container 13
Normal operating cell Temperature 44±2℃ Pieces per container 936



390watt 23.5kg Bifacial Solar Panels BSCI Monocrystalline Solar Panel Kit For Charging 0



FAQ:


Q1:What's the solar panels warranty?

A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.



Q2:Do you accept OEM/ODM orders?

A:We accept OEM/ODM orders.Welcome your inquiry.



Q3:Can I have samples to test?and what's the lead time for the sample order?

A:Yes,of course.The lead time for samples is 7-10 days.



Q4:Are you manufacturer or a trading company?

A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.



Q5:Where are your goods exported?

A:We can export to all over the world.
