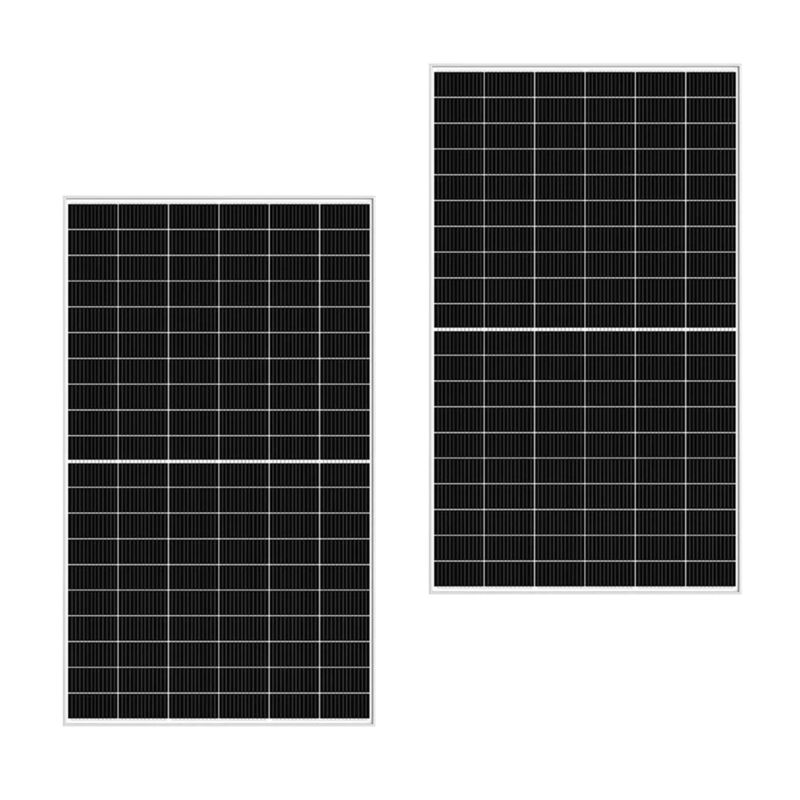

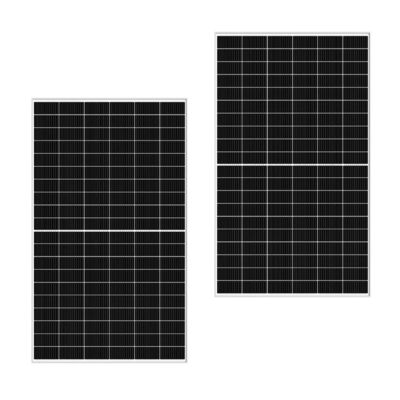

• 555W Mono Solar Panel With Dirt Dust And Water Resistant Design
555W Mono Solar Panel With Dirt Dust And Water Resistant Design

555W Mono Solar Panel With Dirt Dust And Water Resistant Design

Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE、BSCI
Model Number: LS-555
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Cell Type: 555W Mono Solar Panel With Dirt Dust And Water Resistant Design Certifications: CE, BSCI
Product Dimension(mm): 580*505*30mm Efficiency: 22%
Output Cables: 4 Mm²,Length:1300mm Protection Class: IP68
Type Of Connector: MC4 Warranty: 25 Years
Highlight:

Dirt Dust Resistant Mono Solar Panel

,

Water Resistant Mono Solar Panel

,

60W Mono Solar Panel

Product Description

555W Mono Solar Panel With Dirt Dust And Water Resistant Design



Solar panels can be seen as an investment that pays off over time. In many cases, the savings on electricity bills can recoup the initial installation costs within a few years. Additionally, some regions offer government incentives, tax credits, or net metering programs, further enhancing the financial benefits.



1)High Efficiency

High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.

2)Reliable and Durable

Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.

3)High Tolerance

It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.



Product Details:

Model LS-555M
Maximum Power(Pmax) 555W
Maximum Power Voltage(Vmp) 41.86V
Maximum Power Current(Imp) 13.26A
Open Circuit Voltage(Voc) 50.7V
Short Circuit Current(Isc) 14.01A
Power Tolerance(Positive) 3%
Cell Type N type Mono-crystalline,182x91mm
Product Dimension(mm) 2279*1134*5.5mm(89.72*44.64*0.22inches)
Weight(KGS) 31.5kg
Protection Class IP68
Maximum System Voltage 1500V DC-(H)
Temperature Range -40℃~85℃
Module Efficiency STC 21.48%
Cell number 144(6x24)(Half-Cell)
Front Glass

(F)2.0mm ultra clear embossed double layer colorless glass

(B)2.0mm semi-tempered glass

Connector Type MC4
Output Cables 4 mm²,Length:1300mm

555W Mono Solar Panel With Dirt Dust And Water Resistant Design 0

Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.046%/℃ Container 40’GP
Temp.Coeff.of Voc(TK Voc) -0.25%/℃ Pieces per pallet 72
Temp.Coeff.of Pmax(TK Pmax) -0.30%/℃ Pallets per container 10
Normal operating cell Temperature 45±2℃ Pieces per container 720







FAQ:


Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.

Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.

Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

Q5:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
