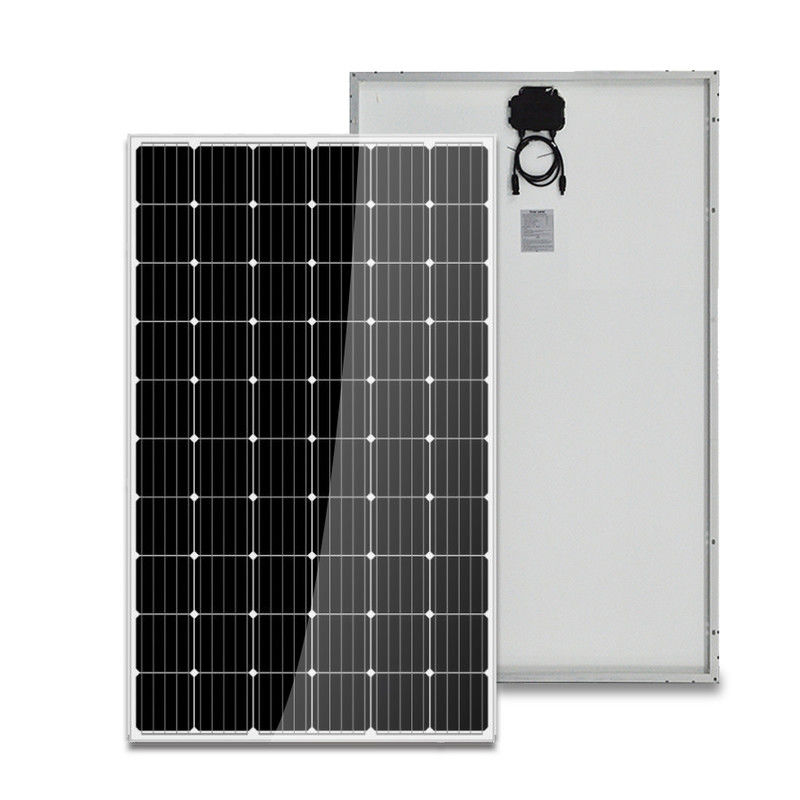

270w 29.8V Monocrystalline Solar Panel 60 Cells For Outdoor Camping
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-270M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Product Name: | 270w Mono Solar Panels | Solar Cell: | Monocrystalline Silicon Solar Cell |
|---|---|---|---|
| Application: | Homes Camping | Contract Dimension: | 1640*992*35 |
| Back Sheet: | White | Protection Class: | IP 65 |
| Front Material: | 3.2mm High Transmission Tempered Glass | Output Cables: | 4 Mm²，Length: 900 Mm |
| Highlight: | 270w monocrystalline solar panel,29.8V monocrystalline solar panel,270w solar panel 60 cells |
||
Product Description
270w 29.8V Monocrystalline Solar Panel 60 Cells For Outdoor Camping
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
Product Details:
| Model | LS-270M |
| Maximum Power(Pmax) | 270W |
| Maximum Power Voltage(Vmp) | 29.8V |
| Maximum Power Current(Imp) | 9.02A |
| Open Circuit Voltage(Voc) | 35.8V |
| Short Circuit Current(Isc) | 9.92A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline |
| Contract Dimensions(mm) | 1640*992*35mm |
| Weight(KGS) | 21kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 16.66% |
| Cell number | 60(6x10) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
FAQ:
Q1: What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2: Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3: Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4: Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5: Where are your goods exported?
A:We can export to all over the world.
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
