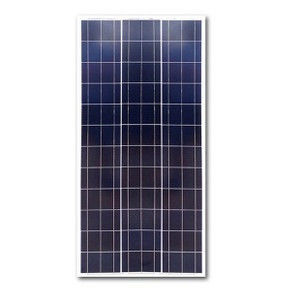

280 Watt 35.88V Poly Solar Panel offgrid RV Roof Polycrystalline Pv Module
Product Details:
| Place of Origin: | China |
| Brand Name: | LS-270P |
| Certification: | CE |
| Model Number: | LS-280P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cell Type: | Polycrystalline | Open Circuit Voltage: | 35.88V |
|---|---|---|---|
| Power: | 280W | Short Circuit Current: | 10.31A |
| Size: | 1640*992*35mm | Warranty: | 25 Years |
| Weight: | 21kg | Benefits: | Efficient,Waterproof,Durable |
| High Light: | 280 watt Poly Solar Panel,35.88V Poly Solar Panel,RV roof polycrystalline pv module |
||
Product Description
Linksun 280 watt Solar Panel Polycrystalline PV Module Power Charger for Battery RV roof Roof offgrid applications
Product Features:
1)Durable&Sturdy
The product contains anodized aluminum alloy frame.It can work in the temperature between -40℃~85℃ and withstand the high winds (2400Pa) and snow loads (5400Pa).
2)Wide application
Common applications includes RV, camper, car, marine, residential rooftop, remote farm,traffic signs, etc.
3)eco-friendly
It uses polycrystalline solar cells. A poly crystalline solar panel is economical, eco-friendly, consumes less energy, and can function in all temperatures.
Product Details:
| Model | LS-280P |
| Maximum Power(Pmax) | 280W |
| Maximum Power Voltage(Vmp) | 29.85V |
| Maximum Power Current(Imp) | 9.38A |
| Open Circuit Voltage(Voc) | 35.88V |
| Short Circuit Current(Isc) | 10.31A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Poly-crystalline |
| Contract Dimensions(mm) | 1640*992*35mm |
| Weight(KGS) | 21kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 16.86% |
| Cell number | 60(6x10) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
Q6:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.
Q7:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
