160w 17.46V Folding Solar Panel Camping High Power Solar Panels CE For RV
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-F160M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Application: | Camping, Hiking, Fishing, Etc. | Material: | Monocrystalline |
|---|---|---|---|
| Power: | 160W | Product Name: | 160W Folding Solar Panel |
| Service Life: | 25 Years | Size: | Folded: 770x80x670mm; Open: 1560x35x670mm |
| Warranty: | 25Year | Weight: | 13.5kg |
| Working Temperature: | -40°C - 85°C | ||
| High Light: | 160w Folding Solar Panel,17.46V Mono Folding Solar Panel,Camping high power solar panels CE |
||
Product Description

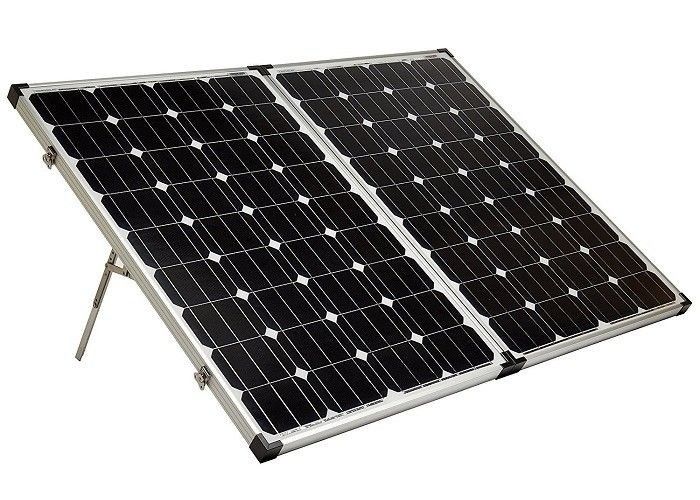

Linksun 160w Mono Foldable Solar Panel with Waterproof Tempered Glass for RV Camping
Product Features:
1)Portability
Compared with traditional solar panels, the biggest advantage of foldable solar panels is their foldable design, which can be easily carried and is very suitable for outdoor travel, camping, wild adventures and other activities.
2) Waterproof&Dustproof
Front material is tempered glass,which is easy to clean and not easy to get dirty.Smooth surface will prevent dust from outside.This model product is equipped with IP 65-rated junction box,which has high level of protection.That can be used in outdoors and various environment.
3) Environmental protection and energy saving
The power generation method of folding solar panels is very environmentally friendly and energy-saving, and will not pollute the environment. At the same time, it uses solar energy to generate electricity for free, which is very economical and practical.
4)Freely adjustable
This product has adjustable brackets,which can be adjustable to different angles.Different angles have different output powers.you can adjust brackets according to the direction of the sunshine to make efficiency optimal.
Product Details:
| Model | LS-F160M |
| Maximum Power(Pmax) | 160W (2x80W) |
| Maximum Power Voltage(Vmp) | 17.46V |
| Maximum Power Current(Imp) | 9.17A |
| Open Circuit Voltage(Voc) | 21.42V |
| Short Circuit Current(Isc) | 9.80A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Monocrystalline |
| Contract Dimensions(mm) |
Product Dimension(Folded) :770x80x670mm Product Dimension(Open):1560x35x670mm |
| Weight(KGS) | 13.5kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Standard Test Conditions | 1000W/m2, AM1.5, 25°C |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
Q6:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.
Q7:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
