200W IP65 17.8V Semi Flexible Solar Panel Solar Panel 12v For Boat
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-SF200M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 2 pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Product Name: | Semi Flexible Solar Panel | Solar Cell: | Monocrystalline Silicon Cells |
|---|---|---|---|
| Application: | RV, Boat And Yacht,Van And Car,Outdoor Camping,off-grid | Contract Dimensions: | 1570*770*3mm |
| Benefits: | High Efficiency,More Flexibility, Higher Toughness | Back Sheet: | White |
| Warranty: | 5 Years | Protection Class: | IP65 |
| Front Material: | ETFE | ||
| Highlight: | IP65 Semi Flexible Solar Panel,17.8V Semi Flexible Solar Panel,200w solar panel 12v For Boat |
||
Product Description

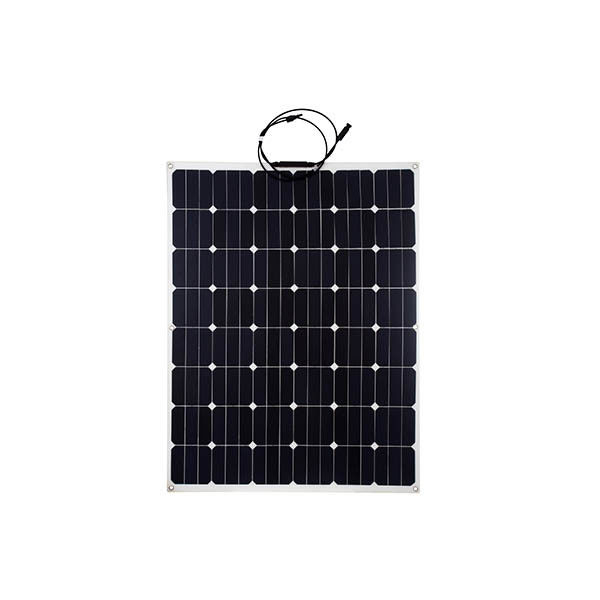

200W IP65 17.8V Semi Flexible Solar Panel Solar Panel 12v For Boat
The 200W semi-flexible solar panel, rated IP65 for water and dust resistance, operates at 17.8V and is perfect for boats. Its semi-flexible design allows for easy installation on curved surfaces, while the robust construction ensures durability in marine environments. With efficient energy conversion and lightweight build, it provides a reliable 12V power source, making it ideal for sustainable and off-grid boating adventures. This panel ensures long-lasting performance, even in challenging conditions.
Product Features:
1)Semi-Flexible
Semi-Flexible Solar Panels can be bending angle up to 30 degrees.It is capable of a wide range of applications and suitable for RV,car,caravans,boat,residential rooftop,yachts,tents,camper,trailers,cabins and other irregular curved surfaces.
2)Light-Weight&easy to install
It is only 0.1inches(3mm) thick and weighs only 2.5kg.Compared with ordinary solar panels,semi-flexible solar panels are thinner and lighter.It can significantly reduce the cost of transportation.Meanwhile,with 6 stainless eyelets,It is also easy to install and remove.because of their lightweight and flexible design.
3)Waterproof&Dustproof
Its surface is made of ETFE and can be durable,anti-erosion,dustproof.Therefore,its surface is easy to clean.Waterproof IP65 rated junction box with diode can make charger safer when using outdoors.
Product Details:
| Model | LS-SF200M |
| Maximum Power(Pmax) | 200W |
| Maximum Power Voltage(Vmp) | 17.8V |
| Maximum Power Current(Imp) | 11.24A |
| Open Circuit Voltage(Voc) | 21.6V |
| Short Circuit Current(Isc) | 9.26A |
| Power Tolerance(Positive) | ± 3% |
| Cell Type | Monocrystalline Silicon Cells |
| Contract Dimensions(mm) | 1570*770*3mm |
| Weight(KGS) | 3.75kg |
| Protection Class | IP65 |
| Maximum System Voltage | 60V |
| Temperature Range | -40℃~85℃ |
| Standard Test Conditions | 1000W/m2, AM1.5, 25°C |
FAQ:
Q1: What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2: Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3: Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4: Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5: Where are your goods exported?
A:We can export to all over the world.
