• 675w 39.0V Silicon Solar Panels Mobile Solar Panels IP68
675w 39.0V Silicon Solar Panels Mobile Solar Panels IP68

675w 39.0V Silicon Solar Panels Mobile Solar Panels IP68

Product Details:

Place of Origin: China
Brand Name: Linksun
Certification: CE
Model Number: LS-D675M

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pcs/carton
Delivery Time: 5-8days
Payment Terms: 30% TT in advance, 70% balance before delivery.
Supply Ability: 1000pieces per week
Get Best Price Contact Now

Detail Information

Cell Type: N Type Mono-crystalline 210x105mm Efficiency: 21.7%
Warranty: 25 Years Protection Class: IP68 Rated
Power: 675W Product Name: 675W Silicon Solar Panels
Weight: 34kg Size: 2384*1303*33mm(93.85x51.29x1.30 Inches)
Frame Type: Silver,Anodized Aluminum Alloy
High Light:

675w Silicon Solar Panels

,

39.0V Silicon Solar Panels

,

675 watt mobile solar panels IP68

Product Description

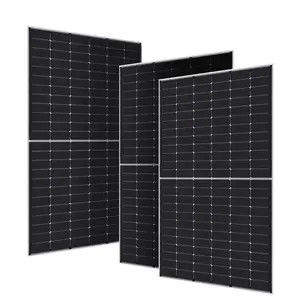

Linksun Monocrystalline 675w silicon solar panels with 25 Years Warranty



Product Features:

   1)High Efficiency

          High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.



   2)Reliable and Durable

           Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.



   3)High Tolerance

          It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.

Product Details:



Model LS-D675M
Maximum Power(Pmax) 675W
Maximum Power Voltage(Vmp) 39.0V
Maximum Power Current(Imp) 17.31A
Open Circuit Voltage(Voc) 46.9V
Short Circuit Current(Isc) 18.24A
Power Tolerance(Positive) 3%
Cell Type N type Mono-crystalline 210x105mm
Product Dimension(mm) 2384*1303*33mm(93.85x51.29x1.30 inches)
Weight(KGS) 34kg
Protection Class IP68 rated
Maximum System Voltage DC 1500V
Operating Temperature Range -40℃~85℃
Module Efficiency STC 21.7%
Cell number 132(6x22)(Half-Cell)
Front Glass 3.2mm High Transmission Tempered Glass(0.13 inches)
Connector Type MC4
Output Cables 4.0 mm²(0.006 inches²),Length:1300mm



Temperature Characteristics Packing Configuration
Temp.Coeff.of Isc(TK Isc) 0.05%/℃ Container 40’HQ
Temp.Coeff.of Voc(TK Voc) -0.25%/℃ Pieces per pallet 66
Temp.Coeff.of Pmax(TK Pmax) -0.29%/℃ Pallets per container 9
Normal operating cell Temperature 41±3℃ Pieces per container 594



675w 39.0V Silicon Solar Panels Mobile Solar Panels IP68 0



FAQ:


Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.

Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.

Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.

Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.

Q5:Where are your goods exported?
A:We can export to all over the world.

Q6:Can we make customized solar panels?
A:Yes,of course.We can design and produce according to your needs.

Q7:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
